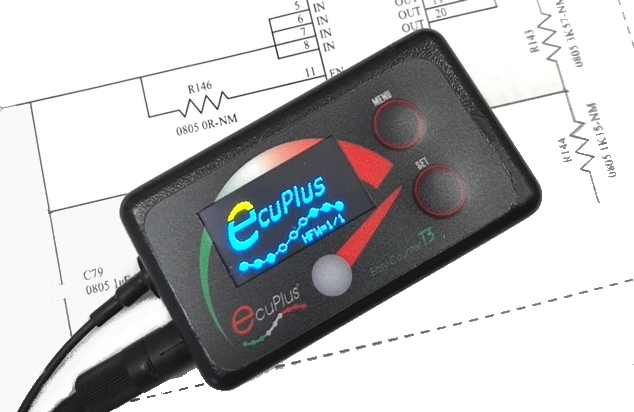

The multifunction tachometer to monitor your engine



Easy Counter T3 has been designed to have under control the essential information for the driver, but also the information necessary for the engine tuner.

All data acquired with Easy Counter T3 can be analyzed through the 1 Inch two-color OLED display, or by connecting it to your spartphone through the specific App that can be downloaded for free.










The use of Easy Counter T3 is very simple: place the clip on the spark plug cable and start the engine. Optionally, the temperature probe can be connected.

Note:

This type of connection cannot in any way change the ignition timing and therefore Easy Counter T3 can also be used during titled competitions.





Tachometer Functionality:







Measure the RPM through the spark plug cable


Engine revolutions are measured through the spark plug clip and this feature is useful in determining if the engine is providing full power. The acquisition of the maximum speed is very useful for the development of the transmission ratios or the adjustment of the carburetion.

A convenient function allows you to memorize the maximum speed reached.



Ignition systems compatibility


The acquisition circuit is compatible with all ignition systems, both Inductive and Capacitive, and is capable of acquiring the revolutions on 2/4 stroke endothermic engines from one to sixteen cylinders.



Temperature measurement


The Easy Counter T3 is equipped with a powerful temperature measurement function via type K thermocouple (measures up to 700 ° C / 1290 ° F). The nature of these robust probes, available in various shapes and configurations (including infrared type), makes them suitable for measuring the engine temperature or even the temperature of the exhaust gases. The analysis of these two important temperatures allows precise adjustment of the fuel mixture and the ignition time, making engine development faster and safer.



Run Time measurement


This function indicates the time of use in the current and previous Run. Knowing the running time of the engine is useful for calculating fuel consumption and avoiding unpleasant engine stops. The Easy ECU also measures the total running time of the engine (up to 4 different engines) that is required to determine when the user needs to be notified to carry out engine maintenance.





Stores data acquired on the race track


Easy Counter T3 acquires rpm, temperature and elapsed time to store the maximum peaks reached in the internal memory. The information on performance and any critical issues will allow you to fine-tune your engine.





Configuration Menu


Easy Counter T3 has a configuration menu with which you can select the number of cylinders of your engine, the temperature unit of measure, the automatic shutdown time and rpm rounding displayed.





Integrated and rechargeable LiPo battery


Easy Counter T3, is powered by the internal battery and the state of charge, is constantly monitored by the microcontroller to alert you on the level of autonomy, internal temperature etc. The battery capacity guarantees an autonomy of about 13 hours of continuous operation and recharging takes place through the micro USB port.





Smartphone connection


By means of a specific Android App compatible with all smartphones and tablets, it is possible to view the acquired data in real time which become useful information for the analysis of the performance of your engines.





Firmware upgradeable


Thanks to the continuous development and updating of the product, the firmware residing in the microcontroller can be updated through a specific programming tool available for free in the download section. It is thus possible to have a product that is always updated in terms of performance and with all future features.



App smartphone:

App Easy Counter

This App, developed specifically for Android operating systems, allows the connection of the Easy Counter T3 tachometer through the micro Usb port allowing the possibility to view all the information acquired on your smartphone in real time.

Smartphone connection cable:

H.USB-CB Cable

This micro USB C male to micro USB B male cable is made of high quality materials and ensures reliability and high data rate.

H.USB-BB Cable

This micro USB B male to micro USB B male cable is made of high quality materials and ensures reliability and high data rate.

T.TK-P2FE
Compatible accessories:

T.TK-P1E Sensor

Universal probe to measure the air temperature at the engine entrance/exit, air inside the model or any other temperature.

T.TK-P1E

T.TK-P2FE Sensor


Flexible thermocouple suitable for measuring engine temperature

T.TK-P2FE

T.TK-P2RE Sensor


Rigid thermocouple suitable for measuring engine temperature

T.TK-P2RE

T.TK-P3E Sensor


Thermocouple suitable for measuring the temperature of exhaust gasses

T.TK-P3E

T.TK-ADP adapter


K thermocouple connection adapter with mini plug. Useful for your thermocouples sensors.

T.TK-P3E

A.CL-AT1 Clip

By installing this clip it is possible to apply the antenna of your rev counter on the spark plug cable.

T.TK-P3E
Learn more about compatible accessories, you can find them here
